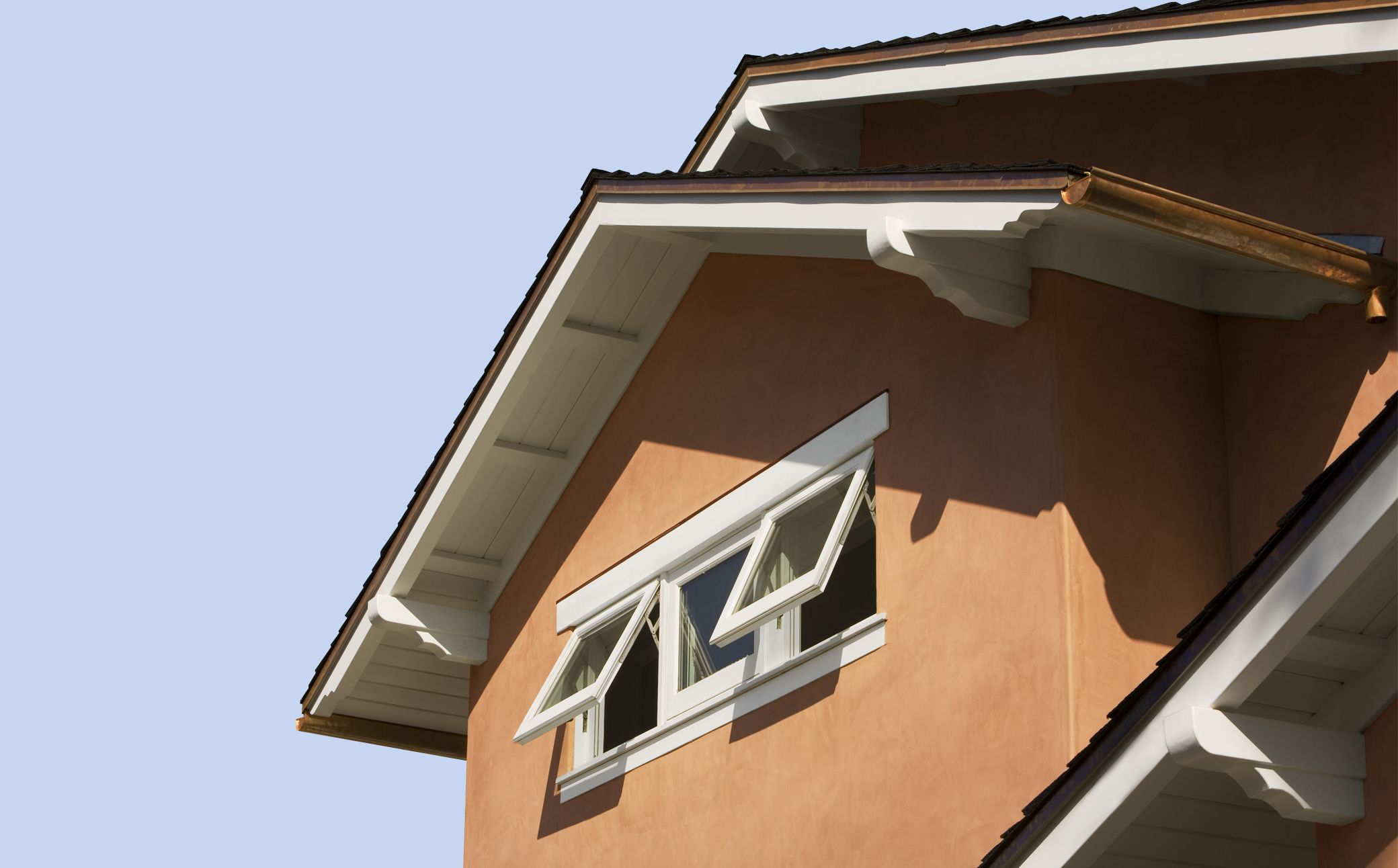

Awning Detail


from Rain
Designed and built to specification. Awning windows are available as Crank-out, Push-out. Traditional or contemporary sticking profile options for both Clad Exterior/Wood Interior and Wood Exterior/Wood Interior.

Screen choices include: Fixed aluminum screens, Phantom® roll down screens and hinged wood screens, all with BetterVue® mesh. Weather tightness, structural integrity and long term durability including NFRC testing data availability on most unit types. Vast selection of wood species.

Warranty +

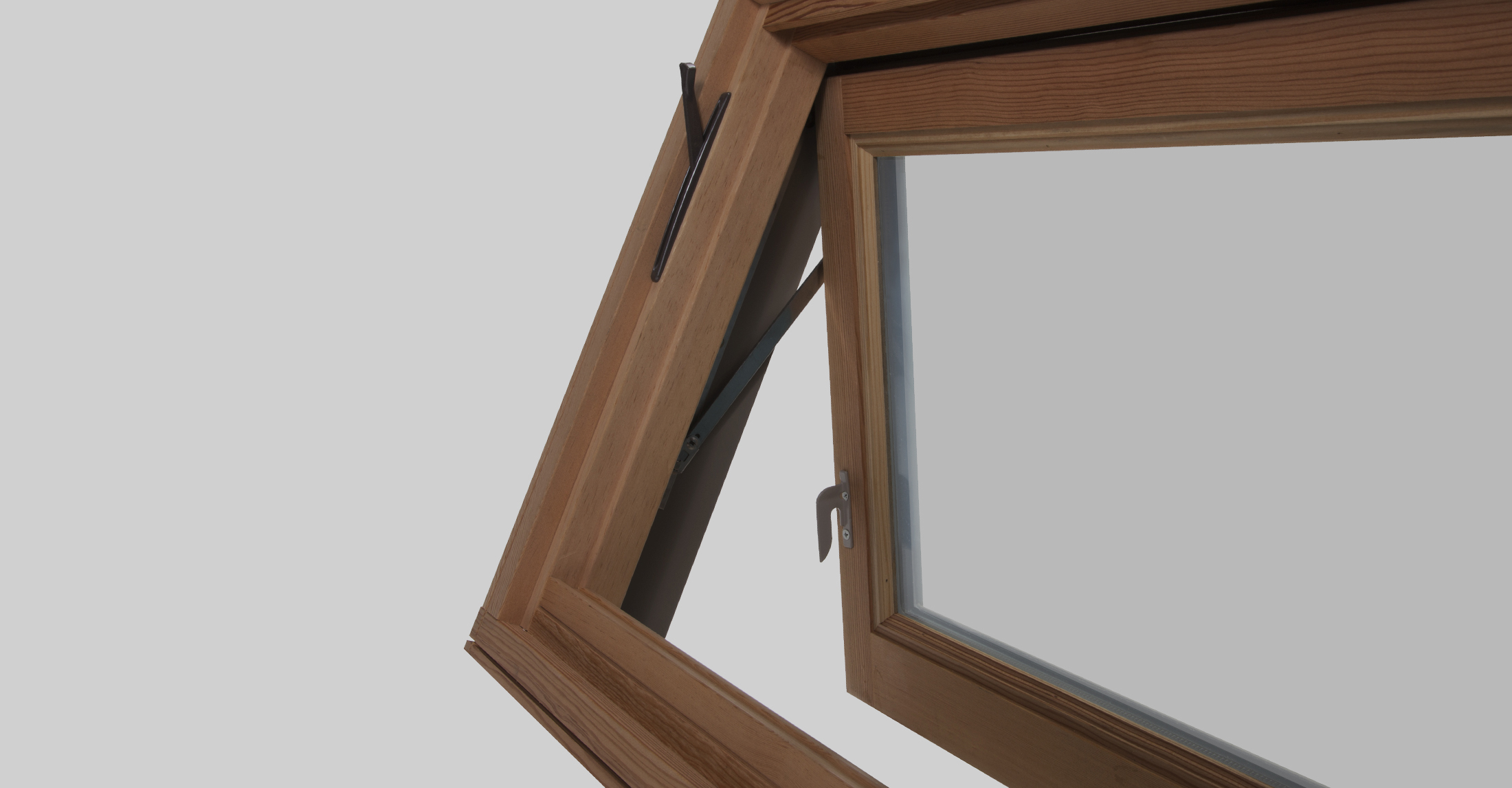

Handles, Hinges
Southland Windows include top of the line, quality hardware mechanisms and trim on all window types including hardware from industry leading manufacturer’s Truth®, Roto® and Melron™

Monarch Crank out awnings include Truth® Encore locks, operators and folding handles with choice of standard finish: White, Tuscan Bronze, Matte Black, Almond, and Bronze, or the option to upgrade to decorative finish options including Antique Brass, Brushed Brass, Satin Nickel, Polished Chrome and more

Locking hardware on both sides of the frame of the Crankout awning provides optimal security.

Monarch Push out windows with Roto® mechanisms and multi point locks include Melron® trim hardware with friction loaded hinges.

Motorized awning option makes opening an awning out of reach an easy task

Melron™ trim hardware with choice of finish options: Satin Nickel, Rustic Oil Rubbed Bronze, Satin Antique Red Bronze, Black E-Coat and more
glass panes
Southland uses Cardinal Glass Industries™ quality glass products exclusively on our Bifold door units

Cardinal is considered one of the world's leading providers of glass used in top-of-the-line residential windows and doors

Cardinal LoE Insulated glass is available as LoE272, LoE366, LoE340, LoE180 and i89 with argon in the air space; capillary tubes included for high altitude specified projects

LoE glass, especially LoE366, offer an excellent combination of high visible light transmittance, neutral color, low U-value and low solar transmission

Cardinal LoE patented, state-of-the-art sputtered coatings deliver optimal energy efficiency

Cardinal's "Endure" stainless steel dark bronze spacer ensures longevity and optimal thermal performance

Preserve™ protective film is standard on Southland units with LoE IG products and protects glass in transit and on the construction site

Neat™ coating ensures windows clean easier and stay clean longer is standard on LoE366. It is optional on all other LoE Cardinal glass products

Specialty, tinted and obscure/decorative glass available
sash & frame
Wood Species
Clad exterior/wood interior or wood exterior/wood interior available

Standard 1 ¾" sash and 2 ¼" available as an option

Virtually limitless wood species include Vertical Grain Douglas Fir, Accoya, Pine, Clear Alder, Knotty Alder, White Oak, Red Oak, Teak, White Maple, Western Red Cedar, Cherry, Walnut, Sapele, African Mahogany, Hemlock and more

Factory primed interior (and primed exterior for wood units) available

Simulated divided lites with dark bronze spacer as ⅞" and 1 ⅛" bars with traditional or contemporary profiles

Our extruded aluminum clad, thick wall 6063 T-5 hardness, components are uniquely tooled and owned by Southland Windows Inc

Clad frames are constructed with heavy extruded aluminum using engineered corner key inserts with injected sealant and mechanically fastened

Frame and head include structural metal nailing fin and drip cap

On clad exterior/wood interior units, all wood is covered by extruded aluminum cladding leaving no wood exposed to exterior elements
clad finish
Clad finish options to customer specification include Kynar wet coating, Anodize and Powder Coat

Southland clad standard finish - AAMA 2605 70% Kynar wet coating, high performance exterior specification resistant to moisture, ozone, UV radiation and weathering and is considered the ultimate for performance and longevity

Standard colors or virtually limitless custom color options available to match a customer supplied color sample

Anodize colors: Clear, Light Bronze, Medium Bronze, Dark Bronze, Champagne, Extra Dark Bronze, and Black - specialty anodize copper also available

Powder Coat available in virtually limitless custom colors

Specialty textured and metallic finish options available
